Power Divider for RF Signal Testing and Measurement

A power divider is a special tool used in radio frequency (RF) testing that helps split an RF signal into smaller parts. Think of it like a road that branches out into multiple smaller roads, allowing cars to go in different directions. In RF testing, the power divider takes one strong signal and divides it into two or more signals that are weaker but still useful for testing. This is very important because engineers need to test how signals behave in different situations. Companies like Yoongwin make high-quality power dividers that help engineers get accurate results in their work.

What is a Power Divider and Why is it Essential for RF Testing?

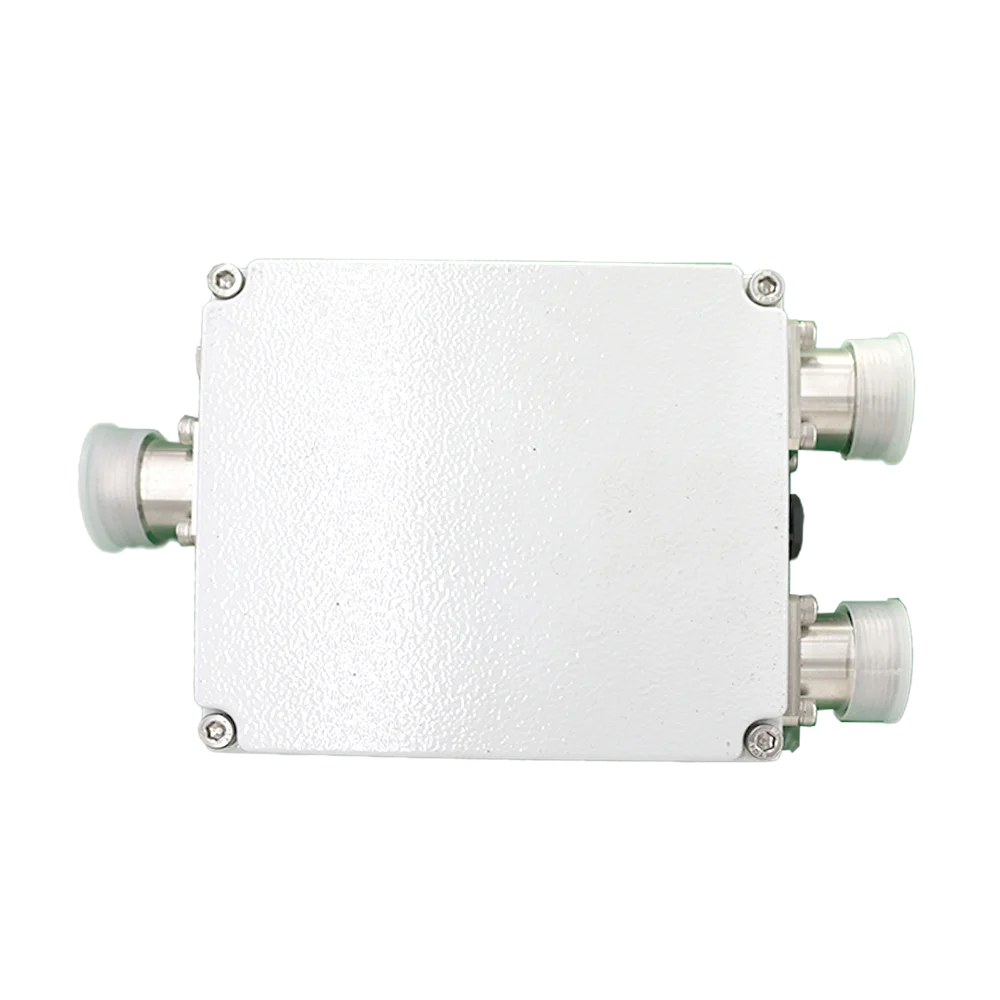

A power divider is a device that takes one input signal and splits it into two or more output signals. This way, engineers can send the same RF signal to multiple devices at once. For example, if a team is testing a new cell phone, they might need to check how the phone communicates with different networks. Using a power divider, they can send the same test signal to several phones at the same time. This saves time and ensures that all devices are tested under the same conditions.

Power dividers are essential because they help in getting accurate measurements. Imagine trying to measure how much water flows through a pipe. If you only measure one spot, you might miss what's happening in other parts of the pipe. With a power divider, engineers can monitor different parts of the system at once, making sure they understand how the signal is moving.

When testing RF signals, consistency is key. If the same signal is tested multiple times with different devices, it might give different results. By using a power divider, the same signal strength can be maintained across all tests. This helps engineers compare results more easily and find out if something is working correctly or if there’s an issue that needs fixing. Yoongwin’s power dividers are built to ensure that the signals remain stable, providing reliable measurements for all kinds of RF testing.

How to Choose the Best Power Divider for Your RF Signal Measurement Needs

Choosing the right power divider for RF testing can be tricky, but it’s important for getting good results. First, you need to think about how many signals you want to split. Some power dividers can split a signal into two outputs, while others can split it into four or more. If you have multiple devices to test, you might want a divider that can handle more outputs.

Next, consider the frequency range. RF signals can vary in frequency, so it’s important to pick a power divider that works well in the frequency range you need. Yoongwin offers power dividers that can handle a wide range of frequencies, making them versatile for different testing situations.

Another thing to think about is the power handling capacity. This tells you how much power the divider can handle without getting damaged. If you send a very strong signal through a divider that can’t handle it, you might break it. Always choose a power divider with a power rating that’s higher than what you plan to use.

Lastly, look at the size and design of the power divider. Some setups might be tight on space, so a compact design could be beneficial. Also, consider how easy it is to connect the divider to your other testing equipment. Yoongwin’s power dividers are designed for easy integration, which can save you time when setting up your tests.

By thinking about these factors, you can choose the best power divider for your RF signal measurement needs. This choice can make a big difference in the quality of your testing and the accuracy of your results.

When looking for high-quality power dividers for RF applications, it’s important to know where to shop. One great place to find these devices is at wholesale stores, which often sell items at lower prices because they buy in bulk. Yoongwin is a fantastic choice for anyone needing reliable power dividers. They offer a wide range of products that are perfect for RF signal testing and measurement. You can visit their website or contact them directly to see what they have available. Shopping online can be very convenient because you can compare different products easily and read reviews from other customers.

When you buy from Yoongwin, you can be sure that you are getting a high-quality product that meets your needs. It’s important to check the specifications of the power dividers you are interested in. Look for details like frequency range, power handling, and the number of output ports. These features will help you determine if the product is right for your RF testing requirements. Also, consider the customer service offered by the company. Good support can help you solve any issues you might have with the product. Yoongwin is known for its excellent customer service, so you can feel confident when making a purchase. Overall, buying power dividers from Yoongwin not only gives you quality but also helps you save money.

While power dividers are useful tools, there can be common issues when using them in RF testing. One problem is signal loss, which means that the strength of the signal can weaken as it passes through the power divider. This loss can affect the accuracy of your measurements. To minimize this issue, it’s important to choose a high-quality power divider that is designed for your specific frequency range. Another common issue power divider is mismatched impedance, which can happen if the power divider does not match the impedance of the other devices in your testing setup. This mismatch can lead to reflections, causing further signal loss and measurement errors.

Additionally, it’s crucial to properly connect all the cables and devices in your RF testing setup. Loose or faulty connections can cause unexpected problems, such as noise or interference in your signals. Make sure to check all connections before starting your tests. Lastly, environmental factors can also affect your measurements. Changes in temperature or humidity can alter the performance of electronic devices, including power dividers. To avoid these issues, try battery power to perform your tests in a controlled environment. By being aware of these common usage problems and taking steps to prevent them, you can improve your RF testing results.

Power dividers play a key role in enhancing accuracy in RF signal testing. They help distribute the input signal evenly across multiple output ports. This means that you can test several devices at once without losing signal strength. When you use a power divider, you can also monitor how different devices respond to the same signal, allowing for better comparisons. This feature is especially useful in research and development, where you need to gather accurate data from various devices.

Using high-quality power dividers, like those from Yoongwin, can further improve your testing accuracy. They are designed to minimize signal loss and maintain a stable connection, which is essential for reliable results. By ensuring that the RF signals remain strong and clear, you can be more confident in your measurements. Additionally, power dividers can help reduce the complexity of your RF testing setup. Instead of needing separate signal sources for each device, a power divider allows you to use one source and smart battery distribute it effectively. This simplification not only saves time but also reduces the chance of errors in your testing process. Overall, power dividers are valuable tools that enhance the accuracy and efficiency of RF signal testing, making them a must-have in any RF testing lab.
